RS20 model

  • Automatically disconnects start-battery from house-battery when RV engine shuts off (avoids flattening start-battery when running appliances while parked).



  • Allows start-battery to charge before connecting house-battery.  Otherwise known as a VSR (voltage sensitive relay)



  • Automatically connects house-battery to alternator when driving to charge house-battery



  • Alarms when house-battery is too low or too high (under 11.8V, over 15.0V).  Peace of mind when drawing power from or charging your expensive house-batteries



  • Monitors up to 3 water tanks including grey water (tank sensor cables to be purchased separately)    Suitable for metal and non-metal tanks



  • Simple to integrate with solar panels



  • Automatically reduces charge rate if house-battery is over charging (if house-battery exceeds 15.1V)



Items included:
-RS20 wall-mount unit
-30amp ring terminals (for cable AWG10 - 12)
-Mounting screws
-Manual



Product dimensions: 137mm x 94mm x 25mm

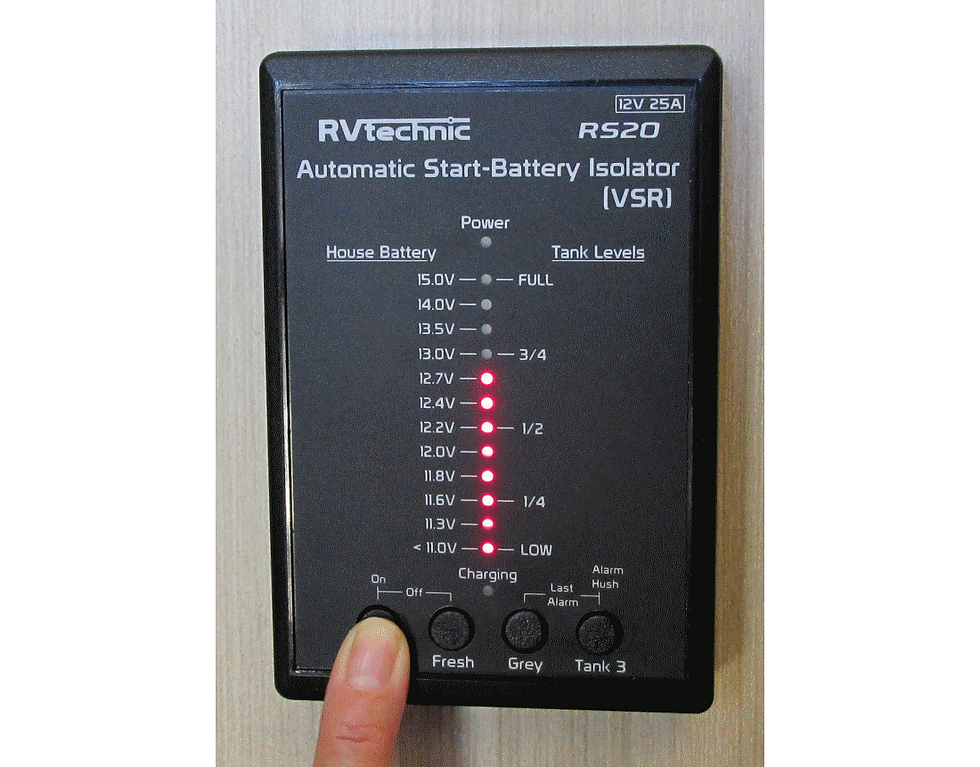

Automatic Start-Battery Isolator / DC Volt Meter / Water Tank Meters x3

SKU: 000RS20
$245.00Price

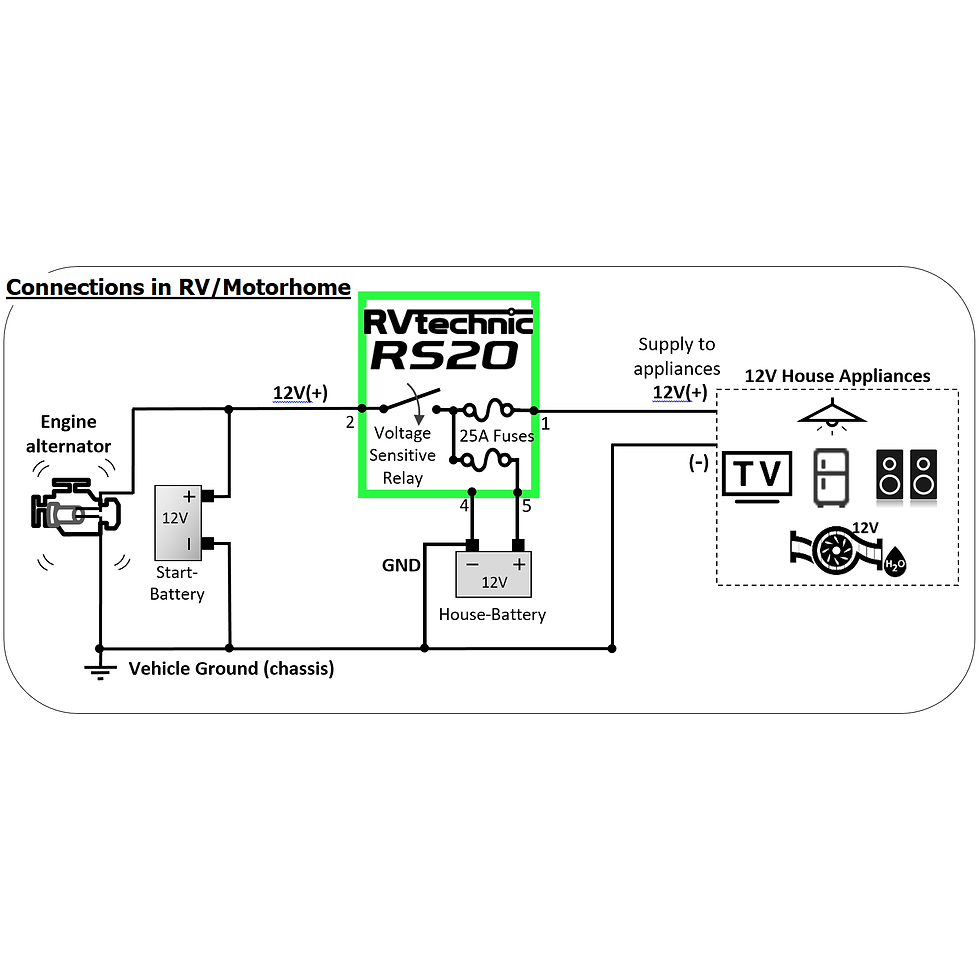

  • Check out our Product Support page for user manual & installation guide. Product photos on this page include RV connection diagram

    Dimensions: 137mm x 94mm x 25mm



    Max charge current: 25amps continuous

    Required alternator output: 13.7V to 14.5V when running (typical output of a standard RV alternator)

    Recommended house-battery: 12V lead-acid/SLA/AGM.  Deep-cycle or standard type.

    Max 800CCA.  Max 300Ah, Min 100Ah

    Ultra low current consumption: 4mA

    Engages house-battery charging when start-battery voltage is: 13.6V



    Disengages house-battery charging when start-battery voltage is: 12.95V

    Note: Ign signal input to RS20 is optional. It can be used to quicken engage/disengage times after engine is started/shut off.

  • Two year warranty (see Returns & Warranty page for full details)
