RS60 model
- Fully automatic charging of dual 12volt house-batteries from a 24volt charge source (alternator / solar / battery charger).
- Equalises dual 12volt house-batteries during charging so neither battery becomes overcharged or depleted.
- Enables reliable running of 12volt appliances in 24volt RVs
- Automatically disconnects start-batteries from house-batteries when RV engine shuts off (avoids flattening start-batteries when running appliances while parked). Allows start-batteries to charge before reconnecting house-batteries. Otherwise known as a VSR (voltage sensitive relay)
- Alarms when house batteries are too low (under 11.5V)
- Simple to integrate with solar panels
- High efficiency 24volt alternator to 12volt battery charging using a patented system with no lossy components in the charge circuit, therefore maximum charge into your batteries and the RS60. Note that the RS60 needs no fans or heatsinks due to its efficiency.
- Aluminium case with nylon mounting brackets
Items included:
-RS60 unit
-Nylon mounting brackets + screws
-Manual
Aluminium case dimensions: 205 x 180 x 62 mm

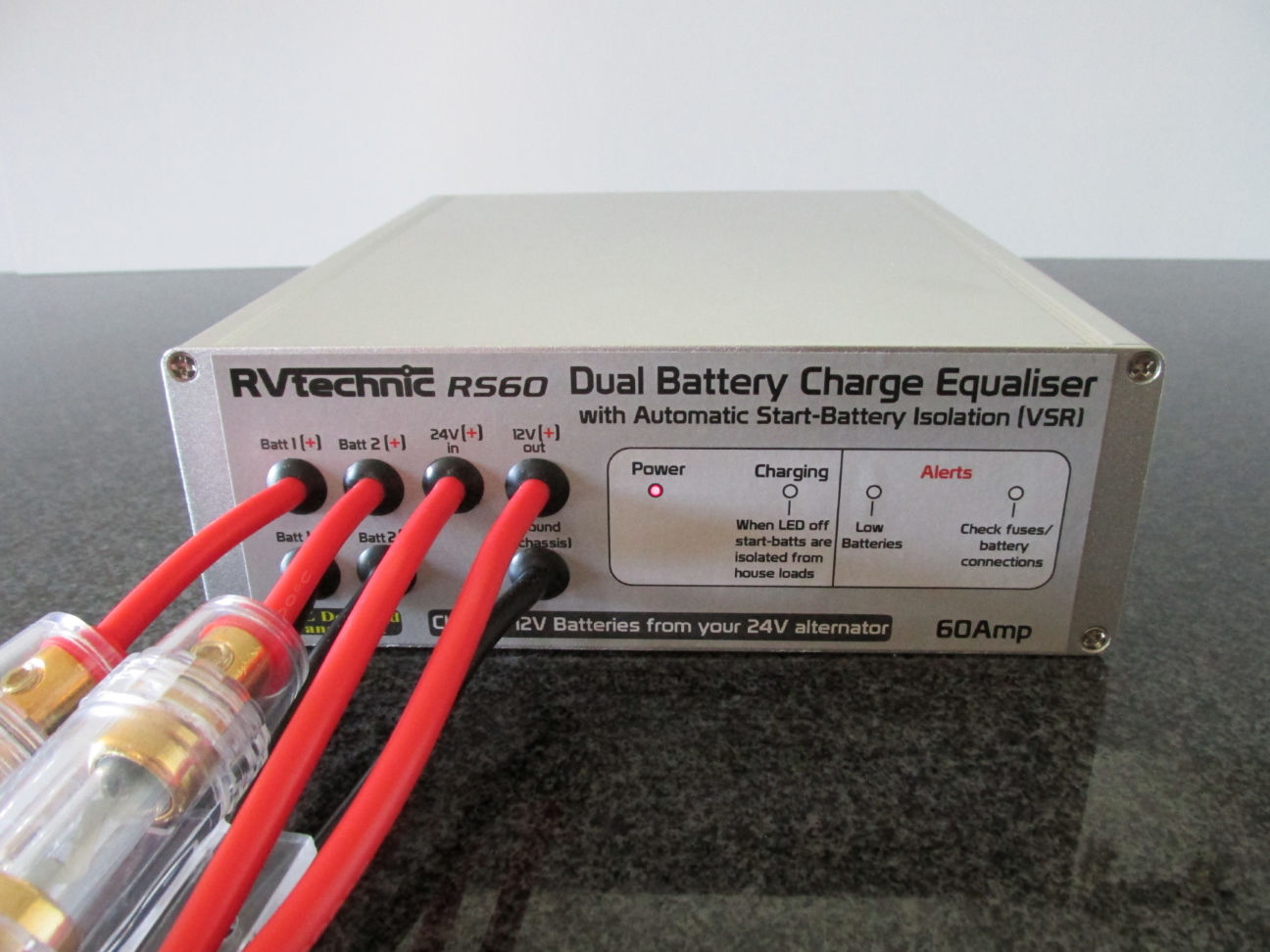

60Amp Dual Battery Equaliser with Start-Battery Isolator (VSR)
Check out our Product Support page for user manual & installation guide
Product photos on this page include RV connection diagram
Engages house-battery charging when 24V charging input voltage is: > 27.2V
Disengages house-battery charging when 24V charging input voltage is: < 26.2V
- Required alternator output: 27.4V to 29V when running (typical output of a standard 24volt RV alternator)
- Recommended house-batteries (x2): 12V lead-acid/SLA/AGM. Deep cycle or standard.
Minimum 50Ah each
- Ultra low current consumption: 5mA
- Max charging / equalising current: 60amps continuous
Two year RTB warranty (see Returns & Warranty page for full details)
